PLASEAL B-UF

•
•
•
•

■FEATURES

• Passed non-combustibility standard level at combustion test for materials of train car uses, and obtained NFPA 130/EN 45545-2 standard certificate (complying with performance criteria).
• Superior to frame-resistance.
• Excel at adhesiveness, waterproof and sustainability of sealing performance.
• Fined texture and non-sticky tactile sensation make easy workability.
• No irritating odor because of non-solvent type.
• Good at workability under low temperature environment.

■USES

• Sealing for voids and spaces requiring waterproof, protection from insects, corrosion, dust prevention and seal performance.

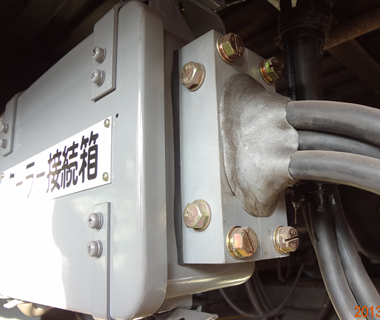

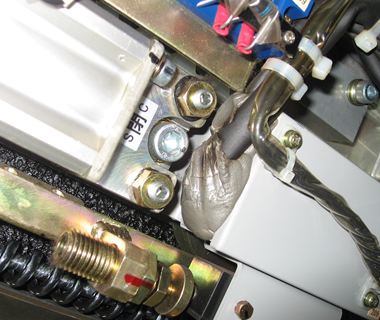

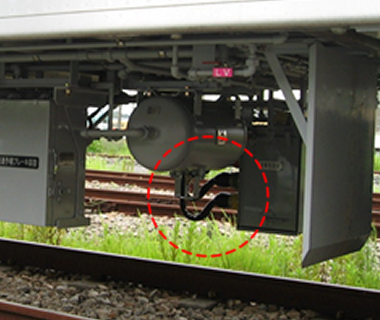

• Vehicles related: train cars, etc.
• Vessels related: inner sealing for water-proof gland, lightning equipment, traffic light device, telecommunication equipment, etc.

■HOW TO USE

• Please clean the surface where the sealing products will be applied, and be free of drainage such as oil, water, and dust.
• The sealing products can be applied by hand work, and you can use a stick or suitable instrument to support your work.
• Remained products should be stored with the surface covered by some wrap like plastic bag.

■SPECIFICATION

ITEM	PLASEAL B-UF	Method
Appearance	Gray	Observation
Hardness	64	JIS A 5752 Load:100g▪5sec
Specific Gravity	2.00	Convert weight in water
Heat Resistance	NP	Originally measured (80°C×72hr)
Cold Resistance	NP	Originally measured (-20°C×72hr)
Flame Resistance	UL-94 V-0 level	Fire test of the plastic material (Base on UL-94)
Size(mm)	80×40×160

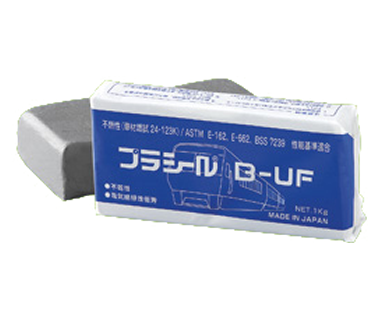

Weight	1kg/pack
Packing	20packs/case

*The above inspection data is measured originally, so it does not guarantee as a standardized data.

*NP = Not Particular

NFPA130		Measured Value		Criteria	Test Standard
Radiant Panel Index (Is)		12.73		< 25	ASTM E162
Smoke Density (Ds)		Flaming Mode 17	Non-Flaming Mode 2	< 100	ASTM E662
Toxic Gas Generation (ppm)	HCN	< 2	< 2	< 150	BSS 7239
	CO	183	10	< 3500
	NOx	< 2	< 2	< 100
	SO2	< 1	< 1	< 100
	HF	< 1.5	< 1.5	< 200
	HCI	< 1	< 1	< 200

EN 45545-2		Measured Value		Criteria (R22/HL3)	Test Standard
Oxygen Index (OI)		32.4		> 32	ISO 4589-2
Smoke Density		15.5		< 150	EN 45545-2 ISO 5659-2
Toxic Testing	CO2	433	Toxicity Index CITNLP(=ΣCITNLPi) 0.03	< 0.75	EN 45545-2:2013 Annex C Method 2
	CO	14.90
	HF	0.19
	HCL	0.04
	HBr	0.00
	HCN	0.09
	NOx	0.10
	SO2	0.19
