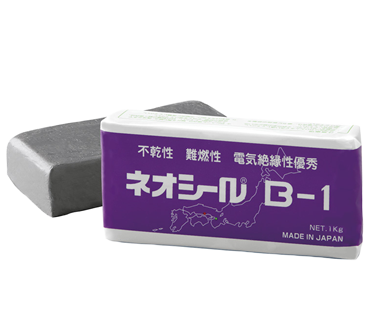

NEOSEAL SERIES

•
•
•

•
•
•
•

■FEATURES

• Excel at adhesiveness, waterproof and sustainability of sealing performance.
• Fined texture and non-sticky tactile sensation make easy workability.
• No irritating odor because of non-solvent type.
• Good at workability under low temperature environment.

■USES

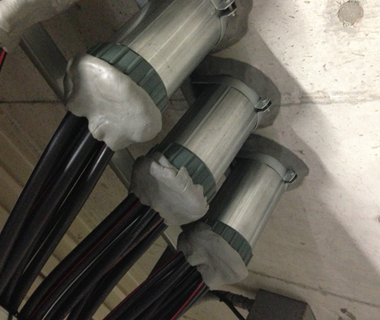

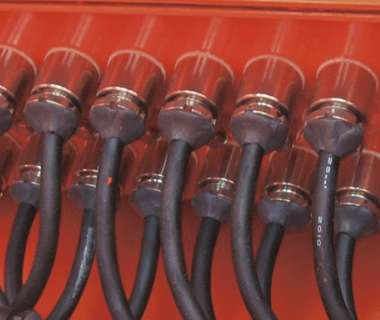

• Sealing for voids and spaces requiring waterproof, protection from insects, corrosion, dust prevention and seal performance.

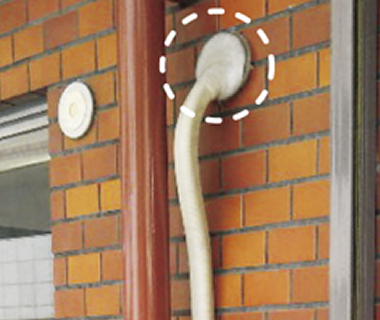

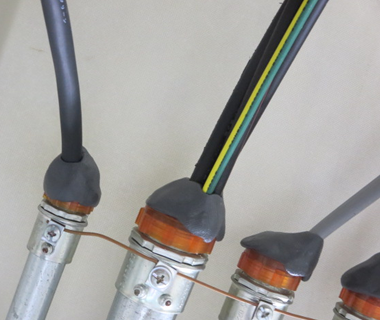

• Construction: cable and pipe space, electrical equipment etc.
• Plant: the cut end of plants for protection after pruning etc.
• Vehicles related: train cars, etc.
• Vessels related: inner sealing for water-proof gland, lightning equipment, traffic light device, telecommunication equipment, etc.

■HOW TO USE

• Please clean the surface where the sealing products will be applied, and be free of drainage such as oil, water, and dust.
• The sealing products can be applied by hand work, and you can use a stick or suitable instrument to support your work.
• Remained products should be stored with the surface covered by some wrap like plastic bag.

■SPECIFICATION

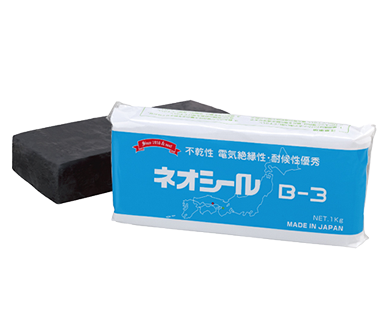

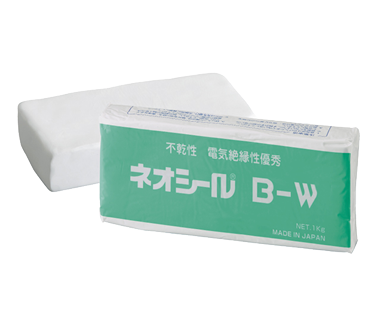

ITEM	NEOSEAL B-3	NEOSEAL B-W	NEOSEAL B-1	Method
Appearance	Dark Gray	White	Light Gray	Observation
Hardness	64	65	63	JIS A 5752 Load:100g▪5sec
Specific Gravity	2.05	2.05	2.05	Convert weight in water
Heat Resistance	NP	NP	NP	Originally measured (80°C×72hr)
Cold Resistance	NP	NP	NP	Originally measured (-20°C×72hr)
Flame Resistance	-	-	UL-94 V-0 level	Fire test of the plastic material (Base on UL-94)
Size(mm)	80×40×160	80×40×160	80×40×160	-
Weight	1kg/pack	1kg/pack	1kg/pack	-
Packing	20packs/case	20packs/case	20packs/case	-

*The above inspection data is measured originally, so it does not guarantee as a standardized data.

*NP = Not Particular
